Tubular burners

The tubular burner is a product offering high flexibility because it can be installed on a wide range of devices. It is an atmospheric burner that works with both 2nd and 3rd family gases without having to regulate the primary air. It can be used either individually or assembled in groups, providing a very stable flame, thus ensuring quite operation.

bruciatore tubolare polidoro

FEATURES

Combustion type: atmospheric
NOx emissions lower than 150 mg/kWh
CO emissions from 50 to 120 ppm - depending on application
Max modulation 1:2
Available in different diameters and lengths

SUITABLE FOR

icon caldaie a basamento
Floor-standing boilers
icona scaldabagno ad accumulo
Storage water heaters
icon generatori aria calda
Gas heating units
icon fry top
Fry top
icon forni
Ovens
icon cucine modulari
Modular stoves
icon friggitrici
Fryers
icon brasiere
Brazers
icon barbecue
Barbecues
icon laundry
Laundry

DIMENSIONs

Diameter (mm) Maximum total length (mm) Maximum heat input (kW)
40 680 9,5
51 980 19
60 980 35

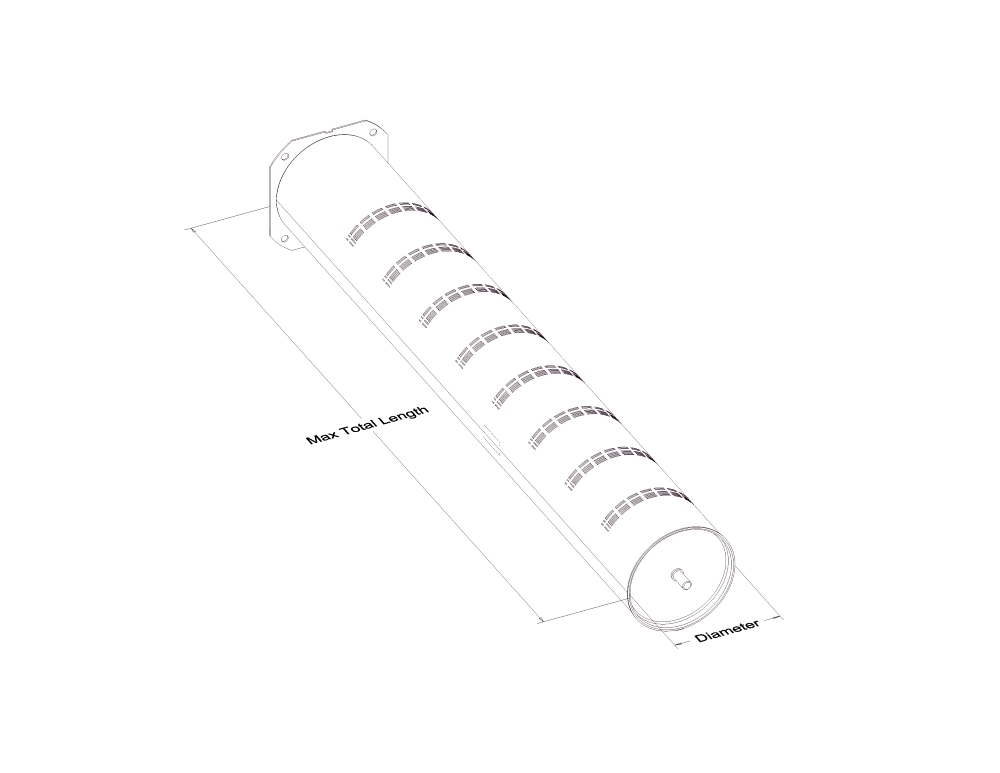

tubolari-disegno-tecnico

CONTACT US FOR MORE INFORMATION

We create tailor-made solutions according to individual needs: get in touch with us to find out more about our products!
