Cylindrical Metal Fiber burners for condensing appliances

Metallic Fiber Premix Boilers for modulating condensation devices with capacities over 100kW. Available in cylindrical or flat configurations and suitable for commercial and industrial applications. The fiber maintains the temperature of the burner surface under control. The guaranteed level of NOx emissions is less than 56 mg/kWh.

FOCUS ON: FIBRA POLIDORO

bruciatore premix fibra polidoro

FEATURES

Developed and engineered 100% in-house
High degree of thermal protection
High modulation ratio
Stable combustion, with low CO and NOx emissions
Considerable durability and resistance to oxidation
Suitable for commercial and industrial applications

SUITABLE FOR

icon sistemi ibridi heating
Hybrid systems
icon caldaie a basamento
Floor-standing boilers
icona scaldabagno ad accumulo
Storage water heaters
icon generatori aria calda
Gas heating units
icon fry top
Fry top
icon forni
Ovens
icon cucine modulari
Modular stoves
icon friggitrici
Fryers
icon laundry
Laundry

DIMENSIONs

Diameters (mm) Typical max length (mm) Indicative max heat input (kW) Active end cap
40 300 25 x
50 300 50 x
60 300 100 x
63 300 150 x
70 400 200 x
80 450 300 x
100 350 300 x
140 250 300 x
200 200 300 x
245 200 300 x
HIGH POWER
80 800 350 x
100 1000 600 x
140 1200 110 x
170 1500 1500 x
200 2000 2300 x
245 2000 3100 x
300 2000 4500 x
350 2000 5500 x
480 2000 7000 x

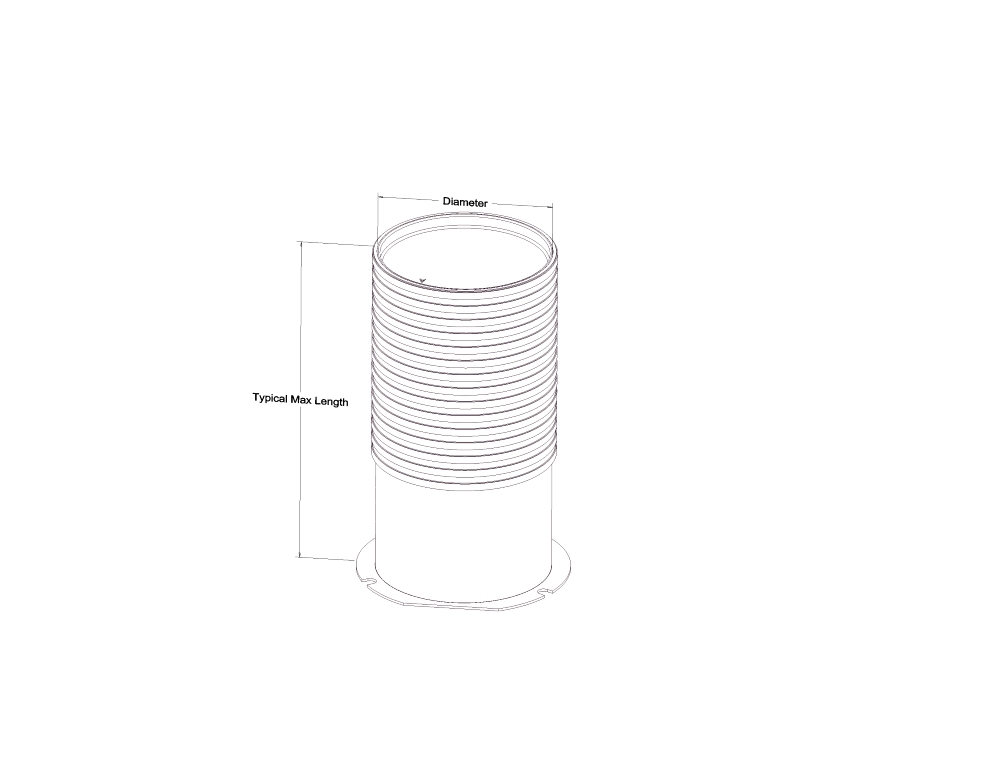

fibra-cilindrica-disegno-tecnico
